DTC023JEB, DTC023J NPN 100mA 50V Digital Transistor

Rohm

Description

DTC023J series NPN 100mA 50V Digital Transistor (Bias Resistor Builtin Transistor) Datasheet Parameter VCC IC(MAX.) R1 R2 Value 50V 100mA 2.2kΩ 47k.

📥 Download Datasheet

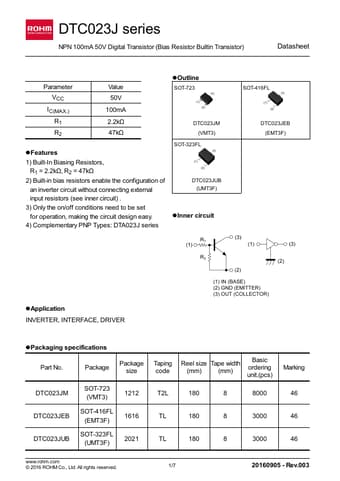

DTC023JEB Datasheet Preview — This datasheet PDF includes multiple part numbers: DTC023JEB, DTC023J. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: DTC023JEB, DTC023J
Manufacturer: ROHM ↗
File Size: 1.37 MB
Datasheet: DTC023J-Rohm.pdf
Description: NPN 100mA 50V Digital Transistor
Note: This datasheet PDF includes multiple part numbers: DTC023JEB, DTC023J.
Please refer to the document for exact specifications by model.

Features

* 1) Built-In Biasing Resistors, 　R1 = 2.2kΩ, R2 = 47kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complem
