DTC024XEB, DTC024X Datasheet - Rohm

DTC024XEB, DTC024X, NPN Transistors

DTC024X series NPN 100mA 50V Digital Transistor (Bias Resistor Built-in Transistor) Datasheet Parameter VCC IC(MAX.) R1 R2 Value 50V 100mA 22kΩ 47k.

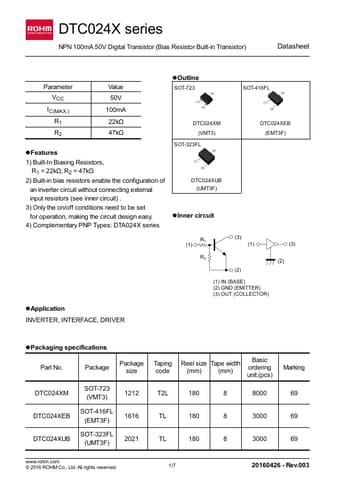

datasheet Preview Page 1 from Datasheet4u.com

DTC024X-Rohm.pdf

DTC024XEB Datasheet Preview — This datasheet PDF includes multiple part numbers: DTC024XEB, DTC024X. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DTC024XEB, DTC024X

Manufacturer:

ROHM ↗

File Size:

1.37 MB

Description:

NPN Transistors

Note:

This datasheet PDF includes multiple part numbers: DTC024XEB, DTC024X.
Please refer to the document for exact specifications by model.

Features

* 1) Built-In Biasing Resistors, 　 R1 = 22kΩ, R2 = 47kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complem
