DTC023JM, DTC023J Datasheet - Rohm

DTC023JM NPN 100mA 50V Digital Transistor

DTC023JM Features

* 1) Built-In Biasing Resistors,  R1 = 2.2kΩ, R2 = 47kΩ 2) Built-in bias resistors enable the configuration of  an inverter circuit without connecting external  input resistors (see inner circuit) . 3) Only the on/off conditions need to be set  for operation, making the circuit design easy. 4) Complem

DTC023J-Rohm.pdf

This datasheet PDF includes multiple part numbers: DTC023JM, DTC023J. Please refer to the document for exact specifications by model.

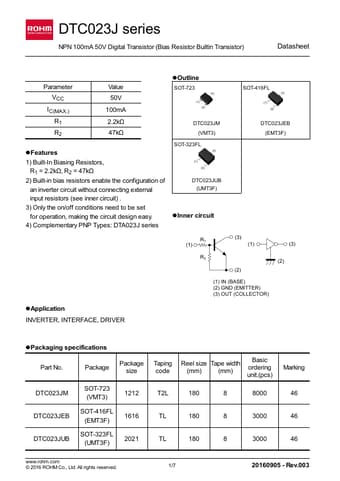

DTC023JM Datasheet Preview Page 2 DTC023JM Datasheet Preview Page 3

Datasheet Details

Part number:

DTC023JM, DTC023J

Manufacturer:

ROHM ↗

File Size:

1.37 MB

Description:

Npn 100ma 50v digital transistor.

Note:

This datasheet PDF includes multiple part numbers: DTC023JM, DTC023J.
Please refer to the document for exact specifications by model.
