DTC023JUB, DTC023J Datasheet - Rohm

DTC023JUB, DTC023J, NPN 100mA 50V Digital Transistor

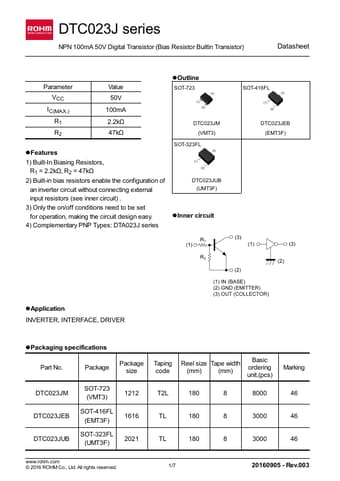

DTC023J series NPN 100mA 50V Digital Transistor (Bias Resistor Builtin Transistor) Datasheet Parameter VCC IC(MAX.) R1 R2 Value 50V 100mA 2.2kΩ 47k.

DTC023J-Rohm.pdf

DTC023JUB Datasheet Preview — This datasheet PDF includes multiple part numbers: DTC023JUB, DTC023J. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DTC023JUB, DTC023J

Manufacturer:

ROHM ↗

File Size:

1.37 MB

Description:

NPN 100mA 50V Digital Transistor

Note:

This datasheet PDF includes multiple part numbers: DTC023JUB, DTC023J.
Please refer to the document for exact specifications by model.

Features

* 1) Built-In Biasing Resistors, 　R1 = 2.2kΩ, R2 = 47kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complem
