* 1) Built-In Biasing Resistors, R1 = 1kΩ, R2 = 10kΩ 2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit) . 3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing
DTC013ZM
1.02 MB
Npn 100ma 50v digital transistors.
DTC013Z series

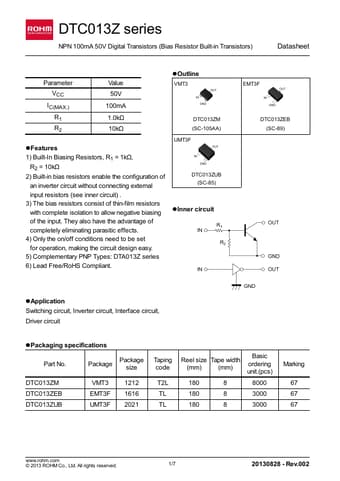

NPN 100mA 50V Digital Transistors (Bias Resistor Built-in Transistors)
Datasheet
Parameter VCC
IC(MAX.) R1 R2
Value 50V 100mA 1.0kΩ .
