DTC2056 - N-Channel MOSFET

DTC2056 Description

N-Channel 20-V (D-S) MOSFET DTC2056 www.din-tek.jp PRODUCT SUMMARY VDS (V) 20 RDS(on) (Ω) 0.015 at VGS = 4.5 V 0.013 at VGS = 10 V ID (A)a 9.1 9..

DTC2056 Features

* Halogen-free

DTC2056 Applications

* Load Switches for Portable Devices RoHS COMPLIANT DD GD S G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current TC = 25 °C TC = 70 °C

📥 Download Datasheet

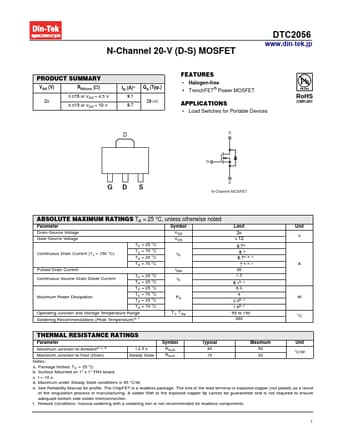

Preview of DTC2056 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTC2056
Manufacturer
Din-Tek
File Size
458.66 KB
Datasheet
DTC2056-DinTek.pdf
Description
N-Channel MOSFET
