DTN10N90SJ - N-Channel Super Junction Power MOSFET

DTN10N90SJ Description

DTN10N90SJ/DTP10N90SJ/DTP10N90FSJ www.din-tek.jp N-Channel 900V (D-S) Super Junction Power MOSFET PRODUCT SUMMARY VDS (V) at TJ max.900 RDS(on) m.

DTN10N90SJ Features

* Low figure-of-merit (FOM) Ron x Qg
* Low input capacitance (Ciss)
* Reduced switching and conduction losses
* Ultra low gate charge (Qg)

DTN10N90SJ Applications

* Server and telecom power supplies
* Switch mode power supplies (SMPS)
* Power factor correction power supplies (PFC)
* Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting TO-247AC D GD S Top View GDS Top View S D G Top View ABSOLUTE MAXIMU

📥 Download Datasheet

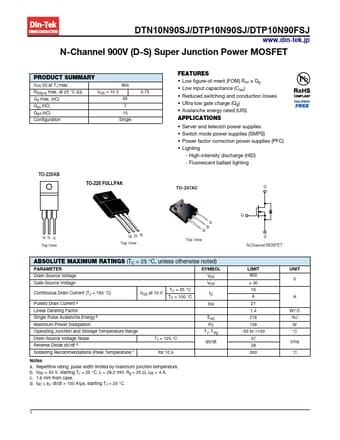

Preview of DTN10N90SJ PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTN10N90SJ
Manufacturer
Din-Tek
File Size
419.00 KB
Datasheet
DTN10N90SJ-DinTek.pdf
Description
N-Channel Super Junction Power MOSFET
