DTP10N80SJ, DTP10N80SJ-Din N-Channel Super Junction Power MOSFET

DTP10N80SJ Description

DTN10N80SJ/DTP10N80SJ/DTP10N80FSJ www.din-tek.jp N-Channel 800V (D-S) Super Junction Power MOSFET PRODUCT SUMMARY VDS (V) at TJ max.800 RDS(on) m.

DTP10N80SJ Features

* Low figure-of-merit (FOM) Ron x Qg
* Low input capacitance (Ciss)
* Reduced switching and conduction losses
* Ultra low gate charge (Qg)

DTP10N80SJ Applications

* Server and telecom power supplies
* Switch mode power supplies (SMPS)
* Power factor correction power supplies (PFC)
* Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting TO-247AC D GD S Top View GDS Top View S D G Top View ABSOLUTE MAXIMU

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DTP10N80SJ, DTP10N80SJ-Din. Please refer to the document for exact specifications by model.

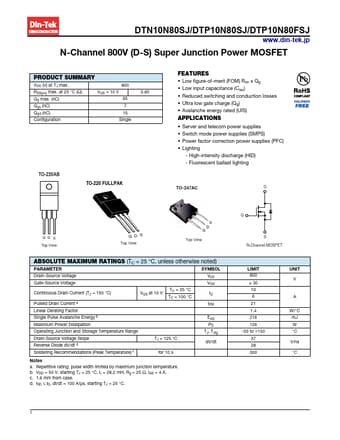

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTP10N80SJ, DTP10N80SJ-Din
Manufacturer
Din-Tek
File Size
418.84 KB
Datasheet
DTP10N80SJ-Din-Tek.pdf
Description
N-Channel Super Junction Power MOSFET
Note
This datasheet PDF includes multiple part numbers: DTP10N80SJ, DTP10N80SJ-Din.
Please refer to the document for exact specifications by model.
