DTP11N50FSJ, DTP11N50SJ N-Channel Super Junction Power MOSFET

DTP11N50FSJ Description

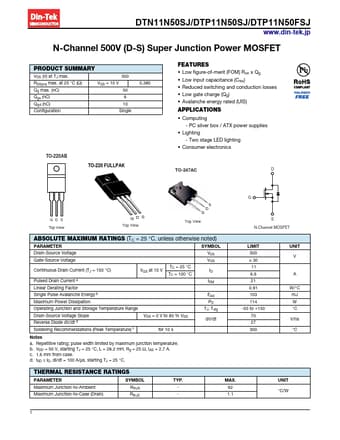

DTN11N50SJ/DTP11N50SJ/DTP11N50FSJ www.din-tek.jp N-Channel 500V (D-S) Super Junction Power MOSFET PRODUCT SUMMARY VDS (V) at TJ max.500 RDS(on) m.

DTP11N50FSJ Features

* Low figure-of-merit (FOM) Ron x Qg
* Low input capacitance (Ciss)
* Reduced switching and conduction losses
* Low gate charge (Qg)

DTP11N50FSJ Applications

* Computing - PC silver box / ATX power supplies
* Lighting - Two stage LED lighting
* Consumer electronics TO-247AC D GD S Top View GDS Top View S D G Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DTP11N50FSJ, DTP11N50SJ. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTP11N50FSJ, DTP11N50SJ
Manufacturer
Din-Tek
File Size
1.30 MB
Datasheet
DTP11N50SJ-DinTek.pdf
Description
N-Channel Super Junction Power MOSFET
Note
This datasheet PDF includes multiple part numbers: DTP11N50FSJ, DTP11N50SJ.
Please refer to the document for exact specifications by model.
