DTP7N50FSJ, DTP7N50SJ N-Channel Super Junction Power MOSFET

DTP7N50FSJ Description

DTP7N50SJ/DTP7N50FSJ/DTU7N50SJ/DTL7N50SJ ZZZGLQWHNMS /$IBOOFM507 %4 4VQFS+VODUJPOPower MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.

DTP7N50FSJ Features

* Low Gate Charge Qg Results in Simple Drive Requirement Available
* Improved Gate, Avalanche and Dynamic dV/dt RoHS
* Ruggedness COMPLIANT
* Fully Characterized Capacitance and Avalanche Voltage and Current
* Effective Coss Specified
* Compliant to

DTP7N50FSJ Applications

* Switch Mode Power Supply (SMPS)
* Uninterruptible Power Supply TO-220AB TO-220 FULLPAK TO-252 TO-251 D G GD S Top View GDS Top View GDS Top View GDS Top View ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted PARAMETER SYMBOL Drain-Source Voltage Gate-Source

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DTP7N50FSJ, DTP7N50SJ. Please refer to the document for exact specifications by model.

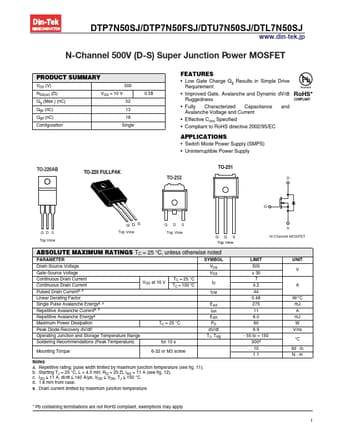

datasheet Preview Page 2 datasheet Preview Page 3
