DTQ1204, DTQ1204-Din Datasheet - Din-Tek

DTQ1204, DTQ1204-Din, N-Channel 20V MOSFET

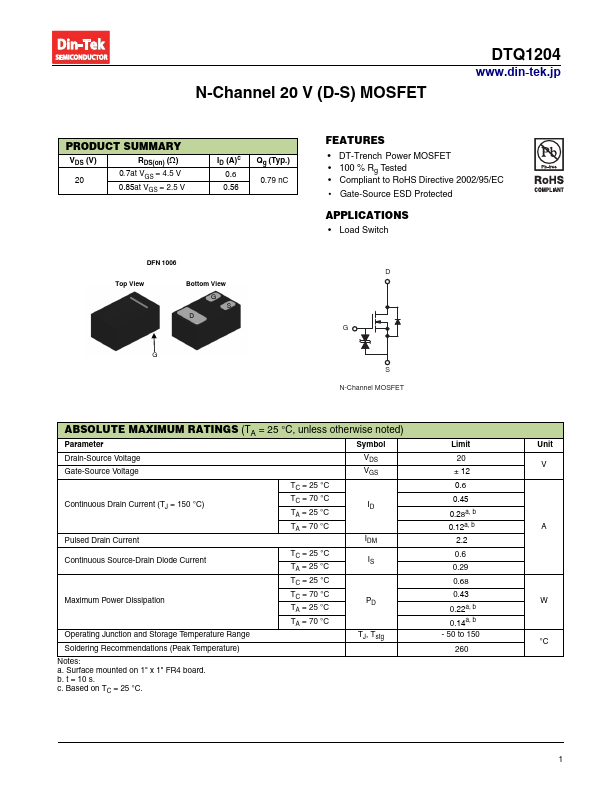

N-Channel 20 V (D-S) MOSFET DTQ1204 www.din-tek.jp PRODUCT SUMMARY VDS (V) 20 RDS(on) () 0.7at VGS = 4.5 V 0.85at VGS = 2.5 V ID (A)c 0.6 0.56 .

datasheet Preview Page 1 from Datasheet4u.com

DTQ1204-Din-Tek.pdf

DTQ1204 Datasheet Preview — This datasheet PDF includes multiple part numbers: DTQ1204, DTQ1204-Din. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DTQ1204, DTQ1204-Din

Manufacturer:

Din-Tek

File Size:

402.53 KB

Description:

N-Channel 20V MOSFET

Note:

This datasheet PDF includes multiple part numbers: DTQ1204, DTQ1204-Din.
Please refer to the document for exact specifications by model.

Features

* DT-Trench Power MOSFET
* 100 % Rg Tested
* Compliant to RoHS Directive 2002/95/EC

Applications

* Load Switch D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 20 V VGS ± 12 TC = 25 °C 0.6 Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C ID 0.45 0.28a
