* TrenchFET® Power MOSFET
* Thermally Enhanced DFN2X2 Package - Small Footprint Area - Low On-Resistance APPLICATIONS
* Load Switch, PA Switch, and Battery Switch for Portable Devices S G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Param
DTQ2241
Din-Tek
596.17 KB
P-channel mosfet.

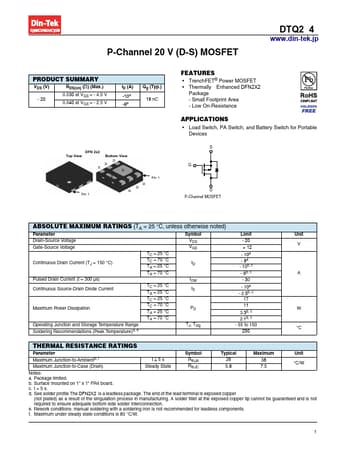

P-Channel 20 V (D-S) MOSFET
DTQ24
www.din-tek.jp
PRODUCT SUMMARY
VDS (V)
RDS(on) () (Max.)
- 20 0.030 at VGS = - 4.5 V 0.040 at VGS = - 2.5 V
.
