DTU20N06, N-Channel MOSFET

N-Channel 60 V (D-S) MOSFET DTU20N06 www.din-tek.jp PRODUCT SUMMARY VDS (V) 60 RDS(on) () 0.074 at VGS = 10 V 0.078 at VGS = 4.5 V ID (A)a 20 13.

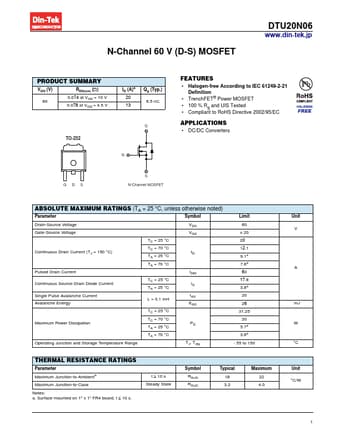

datasheet Preview Page 1 from Datasheet4u.com

DTU20N06-DinTek.pdf

DTU20N06 Datasheet Preview — Preview of DTU20N06 PDF

Datasheet Details

Part number:

DTU20N06

Manufacturer:

Din-Tek

File Size:

369.97 KB

Description:

N-Channel MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested

Applications

* DC/DC Converters GDS S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current Continuous Source-Drain Diode Current Single Pulse Avalanche Cur
