DTU20N10, DTU20N10-Din, N-Channel 100 V (D-S) MOSFET

N-Channel 100 V (D-S) MOSFET DTU20N10 www.din-tek.jp PRODUCT SUMMARY VDS (V) 100 RDS(on) () Max.0.066 at VGS = 10 V 0.080 at VGS = 4.5 V ID (A).

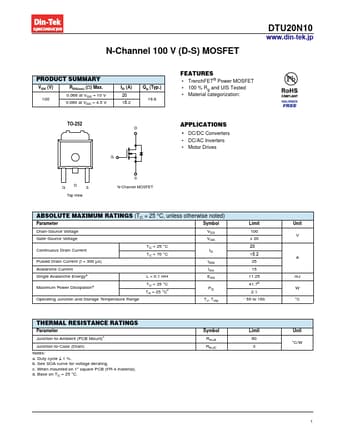

datasheet Preview Page 1 from Datasheet4u.com

DTU20N10-Din-Tek.pdf

DTU20N10 Datasheet Preview — This datasheet PDF includes multiple part numbers: DTU20N10, DTU20N10-Din. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DTU20N10, DTU20N10-Din

Manufacturer:

Din-Tek

File Size:

338.74 KB

Description:

N-Channel 100 V (D-S) MOSFET

Note:

This datasheet PDF includes multiple part numbers: DTU20N10, DTU20N10-Din.
Please refer to the document for exact specifications by model.

Features

* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested

Applications

* DC/DC Converters
* DC/AC Inverters
* Motor Drives GD S Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (t = 300 µs) Avalan
