DTU40N03, DTU40N03_Din, N-Channel MOSFET

D56/ www.daysemi.jp N-Channel 30-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) 30 RDS(on) (Ω) 0.0057 at VGS = 10 V 0.0076 at VGS = 4.5 V ID (A)a 40 13.8.

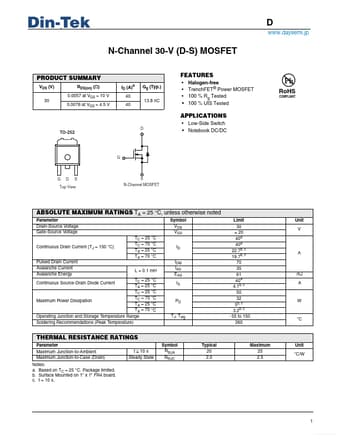

datasheet Preview Page 1 from Datasheet4u.com

DTU40N03_Din-Tek.pdf

DTU40N03 Datasheet Preview — This datasheet PDF includes multiple part numbers: DTU40N03, DTU40N03_Din. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DTU40N03, DTU40N03_Din

Manufacturer:

Din-Tek

File Size:

262.69 KB

Description:

N-Channel MOSFET

Note:

This datasheet PDF includes multiple part numbers: DTU40N03, DTU40N03_Din.
Please refer to the document for exact specifications by model.

Features

* Halogen-free
* TrenchFET® Power MOSFET
* 100 % Rg Tested

Applications

* D TO-252
* Low-Side Switch
* Notebook DC/DC G G D S S N-Channel MOSFET Top View ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current Avalanche Current Avalan
