* TrenchFET® Power MOSFETS
* 175 °C Junction Temperature
* Low Thermal Resistance Package Available RoHS
* COMPLIANT D TO-252 G G D S Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Drain-Source Voltage Gate-Sourc
DTU40N10 Datasheet (389.34 KB)
DTU40N10
Din-Tek
389.34 KB
N-channel mosfet.
www.din-tek.jp
DT81

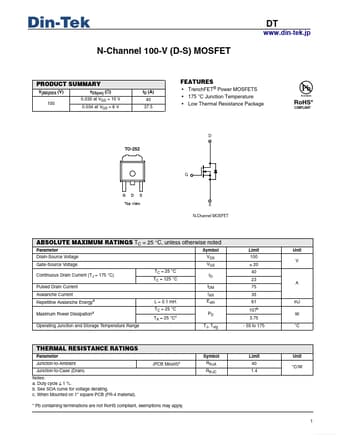

N-Channel 100-V (D-S) MOSFET
PRODUCT SUMMARY
V(BR)DSS (V) 100 rDS(on) (Ω) 0.030 at VGS = 10 V 0.034 at VGS = 6 V ID (A) 40 .
