* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested
* Compliant to RoHS Directive 2002/95/EC APPLICATIONS D TO-252
* Power Supply - Secondary Synchronous Rectification
* DC/DC Converter G G D
DTU70N03 Datasheet (288.86 KB)
DTU70N03
Din-Tek
288.86 KB
N-channel mosfet.
D56/
www.daysemi.jp

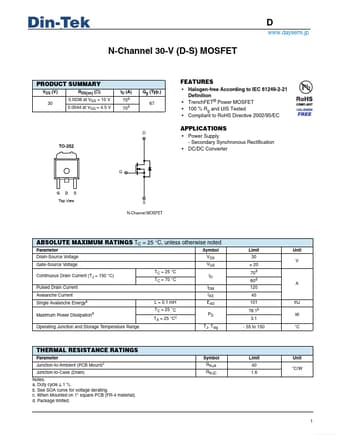

N-Channel 30-V (D-S) MOSFET
PRODUCT SUMMARY
VDS (V) 30 RDS(on) (Ω) 0.0036 at VGS = 10 V 0.0044 at VGS = 4.5 V ID (A) 70d 70d.
