* 175 °C Junction Temperature
* TrenchFET® Power MOSFET
* Material categorization: TO-252 D GDS Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C

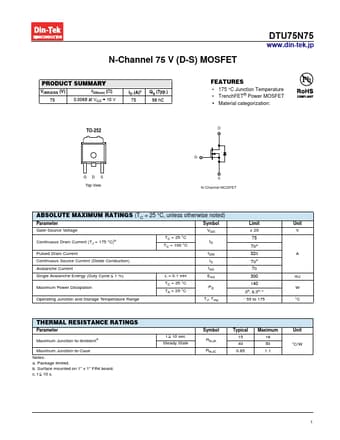

DTU75N75 Datasheet (739.21 KB)
DTU75N75
Din-Tek
739.21 KB
N-channel mosfet.
N-Channel 75 V (D-S) MOSFET
DTU75N75
www.din-tek.jp
PRODUCT SUMMARY
V(BR)DSS (V)
rDS(on) (Ω)
75 0.0068 at VGS = 10 V
ID (A)c 75
Qg (Typ.) 98 nC.
