AL8806 HIGH EFFICIENCY 36V 1.5A BUCK LED DRIVER

The AL8806 is a step-down DC/DC converter designed to drive LEDs with a constant current. The device can drive up to 8 LEDs, depending on the forward voltage of the LEDs, in series from a voltage source of 6V to 36V. The AL8806 switches at frequencies up to 1MHz. This allows the use of small size ex.

AL8806 Features

* LED driving current up to 1.5A

* Better than 5% accuracy

* High efficiency up to 98%

* Operating input voltage from 6V to 36V

* High switching frequency up to 1MHz

* PWM/DC input for dimming control

* Built-in output open-circuit protection

AL8806_DiodesIncorporated.pdf

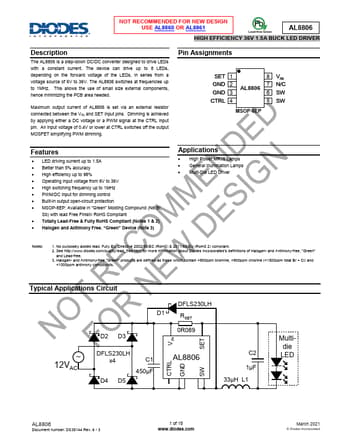

AL8806 Datasheet Preview — Preview of AL8806 PDF
