AL8807B Datasheet - Diodes

HIGH EFFICIENCY 36V 1.3A PWM DIMMABLE BUCK LED DRIVER

AL8807B Features

* LED driving current up to 1.3A

* Better than 5% accuracy

* High efficiency up to 96%

* Optimally controlled switching speeds

* Operating input voltage from 6V to 36V

* PWM input for dimming control

* Open-Circuit LED protection

* LED Chain Short Circuited

* Over

AL8807B General Description

The AL8807B is a step-down DC/DC converter designed to drive LEDs with a constant current. The device can drive up to 9 LEDs, depending on the forward voltage of the LEDs, in series from a voltage source of 6V to 36V. Series connection of the LEDs provides identical LED currents resulting in uniform.

AL8807B Datasheet (4.01 MB)

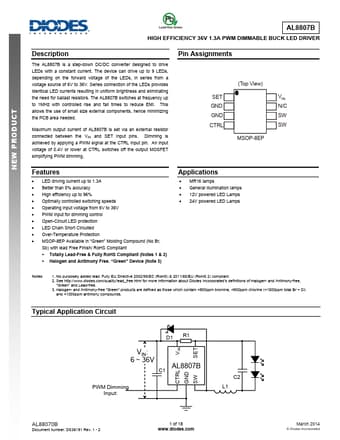

Preview of AL8807B PDF

Datasheet Details

Part number:

AL8807B

Manufacturer:

DIODES ↗

File Size:

4.01 MB

Description:

High efficiency 36v 1.3a pwm dimmable buck led driver.
