AL8866 Datasheet - DIODES

BUCK AND SEPIC LED CONTROLLER

AL8866 Features

* Wide Input Voltage Range from 4.7V to 85V

* Pre-Fixed 400kHz Switching Frequency (Factory Set)

* Spread Spectrum Frequency Modulation for Low EMI

* Analog Dimming Range: 1% to 100% ▪ 100% Dimming Level ±3% Current Accuracy ▪ 20% Dimming Level ±12% Current Accuracy

AL8866 General Description

The AL8866 is a Buck-Boost, Boost, Buck, and SEPIC (single-ended primary-inductance converter) DC-switching controller designed to drive an external MOSFET for high-power LED applications. The AL8866 operates within a wide input power supply range from 4.7V to 85V. Based on a fixed-frequency, peak c.

AL8866 Datasheet (836.69 KB)

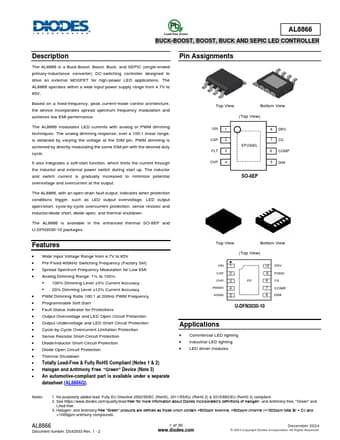

Preview of AL8866 PDF

Datasheet Details

Part number:

AL8866

Manufacturer:

DIODES ↗

File Size:

836.69 KB

Description:

Buck and sepic led controller.
