AL8861

40V 1.5A BUCK LED DRIVER

Diodes

AL8861 Features

* Low BOM Counts

* Wide Input Voltage Range: 4.5V to 40V

* Output Current up to 1.5A

* Internal 40V NDMOS Switch

* Typical 5% Output Current Accuracy

* Single Pin for On/Off and Brightness Control by DC Voltage or PWM Signal

* Recommended Analog Dimming Range: 5% to 100%

AL8861 General Description

The DIODESTM AL8861 is a hysteresis-mode DC-DC step-down converter, designed for driving single or multiple series connected LEDs efficiently from a voltage source higher than the LED voltage. The device can operate from an input supply between 4.5V and 40V and provide an externally adjustable outpu.

AL8861 Datasheet (1.23 MB)

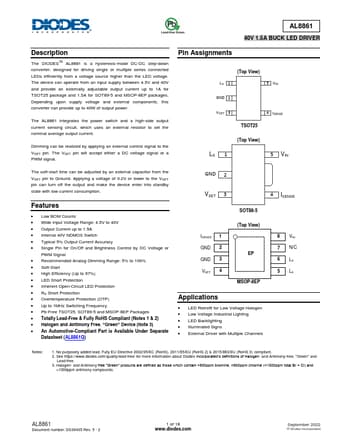

AL8861 Datasheet Preview — Preview of AL8861 PDF

Datasheet Details

Part number:

AL8861

Manufacturer:

DIODES ↗

File Size:

1.23 MB

Description:

40v 1.5a buck led driver.
