AL8861Q

HIGH EFFICIENCY 40V 1.5A AUTOMOTIVE GRADE BUCK LED DRIVER

AL8861Q Features

* Wide Input-Voltage Range: 4.5V to 40V

* Output Current Up to 1.5A

* Internal 40V NDMOS Switch

* Typical 5% Output Current Accuracy

* Single Pin for On/Off and Brightness Control by DC Voltage or PWM Signal

* High Efficiency (> 95%)

* LED Short-Circuit Protection

* I

AL8861Q General Description

The AL8861Q is a hysteresis mode DC-DC step-down LED driver, designed for driving single or multiple series of the connected LEDs efficiently from a voltage source higher than the LED voltage. The device can operate with an input supply from 4.5V to 40V and provide an externally adjustable output cu.

AL8861Q Datasheet (820.52 KB)

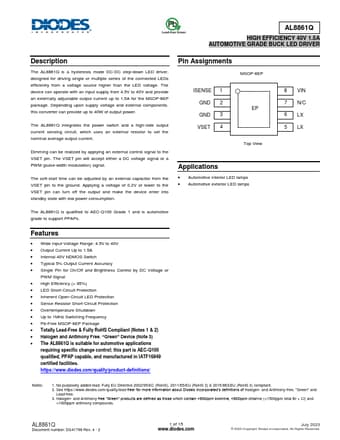

Preview of AL8861Q PDF
