AL8860Q

HIGH EFFICIENCY 40V 1.5A AUTOMOTIVE GRADE BUCK LED DRIVER

AL8860Q Features

* Wide Input Voltage Range: 4.5V to 40V

* Output Current Up to 1.5A

* Internal 40V NDMOS Switch

* Typical 5% Output Current Accuracy

* Single Pin for On/Off and Brightness Control by DC Voltage or PWM Signal

* High Efficiency (>95%)

* LED Short-Circuit Protection

* In

AL8860Q General Description

Pin Assignments The AL8860Q is a hysteresis mode DC-DC step-down LED driver, designed for driving single or multiple series of the connected LEDs efficiently from a voltage source higher than the LED voltage. The device can operate with an input supply voltage from 4.5V to 40V and provide an exter.

AL8860Q Datasheet (875.96 KB)

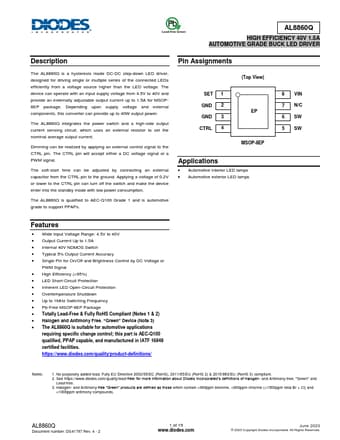

Preview of AL8860Q PDF

Datasheet Details

Part number:

AL8860Q

Manufacturer:

DIODES ↗

File Size:

875.96 KB

Description:

High efficiency 40v 1.5a automotive grade buck led driver.
