AL8860 - 40V 1.5A BUCK LED DRIVER

Diodes

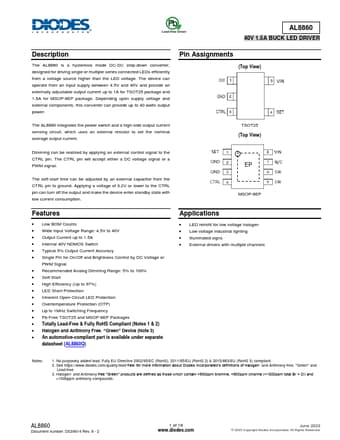

AL8860 Datasheet Preview — Preview of AL8860 PDF

Datasheet Details

Part number	AL8860
Manufacturer	DIODES ↗
File Size	1.00 MB
Description	40V 1.5A BUCK LED DRIVER
Datasheet	AL8860-Diodes.pdf

AL8860 Product details

Description

The AL8860 is a hysteresis mode DC-DC step-down converter, designed for driving single or multiple series connected LEDs efficiently from a voltage source higher than the LED voltage.

Features

Low BOM Counts.
Wide Input Voltage Range: 4.5V to 40V.
Output Current up to 1.5A.
Internal 40V NDMOS Switch.
Typical 5% Output Current Accuracy.
Single Pin for On/Off and Brightness Control by DC Voltage or PWM Signal.
Recommended Analog Dimming Range: 5% to 100%.
Soft-Start.
High Efficiency (Up to 97%).
LED Short Protection.
Inherent Open-Circuit LED Protection.
Overtemperature Protection (OTP).
Up to 1MHz Switching Frequency.
