AP1084 5A LOW DROPOUT POSITIVE ADJUSTABLE OR FIXED-MODE REGULATOR

AP1084 is a low dropout positive adjustable or fixed-mode regulator with 5.0A output current capability. The product is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V logic supply. AP1084 is also well sui.

AP1084 Features

* 1.4V Maximum Dropout at Full Load Current

* Built-in Thermal Shutdown

* Output Current Limiting

* Adjustable Output Voltage or Fixed 1.5V, 1.8V, 2.5V, 3.3V, 5.0V

* Fast Transient Response

* Good Noise Rejection

* Lead Free Packages: TO252-3L, TO263-3L and TO220-3L

AP1084_DiodesIncorporated.pdf

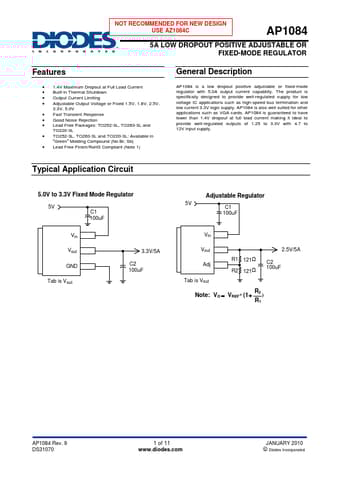

AP1084 Datasheet Preview — Preview of AP1084 PDF

Datasheet Details

Part number:

AP1084

Manufacturer:

DIODES ↗ Incorporated

File Size:

506.55 KB

Description:

5a low dropout positive adjustable or fixed-mode regulator.
