AP1086 1.5A LOW DROPOUT POSITIVE ADJUSTABLE OR FIXED-MODE REGULATOR

AP1086 Description

AP1086 1.5A LOW DROPOUT POSITIVE ADJUSTABLE OR FIXED-MODE REGULATOR .
Pin Assignments AP1086 is a low dropout positive adjustable or fixed-mode regulator with 1.

AP1086 Features

* 3 VIN
* 3-Terminal Adjustable or Fixed 1.5V, 1.8V, 2.5V,3.3V, 5.0V
* 1.4V Maximum Dropout at Full Load Current
* Fast Transient Response
* Built-in Thermal Shutdown
* Output Current Limiting
* Lead Free Packages: TO252-3L, TO263-3L, TO220-3L

AP1086 Applications

* such as high-speed bus termination and low current 3.3V logic supply. AP1086 is also well suited for other applications such as VGA cards. AP1086 is guaranteed to have lower than 1.4V dropout at full load current making it ideal to provide well-regulated outputs of 1.25V to 5.0V with 4.7 to 12V inpu

📥 Download Datasheet

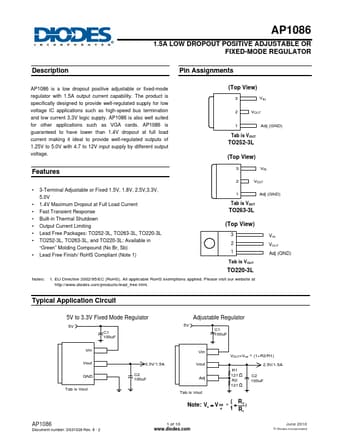

Preview of AP1086 PDF
