DMN5L06K

N-Channel MOSFET

Diodes Incorporated

DMN5L06K Features

* Low On-Resistance

* Very Low Gate Threshold Voltage (1.0V max)

* Low Input Capacitance

* Fast Switching Speed

* Low Input/Output Leakage

* ESD Protected Up To 2kV

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen- and

DMN5L06K General Description

and Applications This new generation 50V N-channel enhancement mode MOSFET is designed to minimize RDS(on) yet maintain superior switching performance. This device is ideal for use in Notebook battery power management and load switches.

* Load Switches

* Level Switches Mechanical Da.

DMN5L06K Datasheet (312.68 KB)

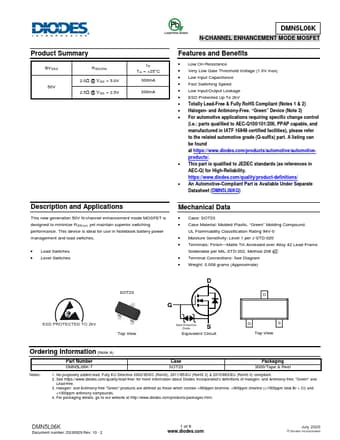

DMN5L06K Datasheet Preview — Preview of DMN5L06K PDF

Datasheet Details

Part number:

DMN5L06K

Manufacturer:

DIODES ↗ Incorporated

File Size:

312.68 KB

Description:

N-channel mosfet.
DMN5L06K N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BV DSS 50V R DS(ON) 2.0Ω @ VGS = 5.0V 2.5Ω @ VGS = 2.5V ID TA = +25°C 300mA 200mA Feat.
