AH1801 ULTRA-SENSITIVE HALL EFFECT SWITCH

📥 Download Datasheet  Datasheet Preview Page 1

Description

NOT RECOMMENDED FOR NEW DESIGN USE AH1808 AH1801 MICROPOWER, ULTRA-SENSITIVE HALL EFFECT SWITCH .
AH1801 is a Micropower, Ultra-sensitive Hall Effect Switch, which is with two Hall effect plates and a output driver, mainly designed for battery.

📥 Download Datasheet

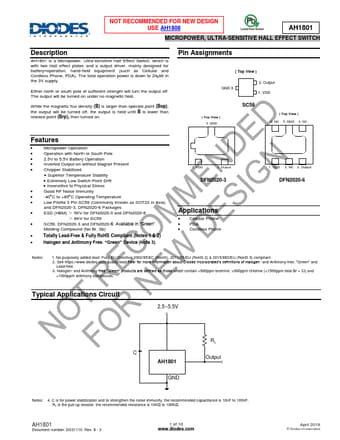

Preview of AH1801 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
AH1801
Manufacturer
DIODES ↗
File Size
442.27 KB
Datasheet
AH1801-Diodes.pdf
Description
ULTRA-SENSITIVE HALL EFFECT SWITCH

Features

* Micropower Operation
* Operation with North or South Pole
* 2.5V to 5.5V Battery Operation
* Inverted Output-on without Magnet Present
* Chopper Stabilized
* Superior Temperature Stability
* Extremely Low Switch-Point Drift
* Insensitive to Physical Stress
* Goo

Applications

* Cellular Phone
* PDA
* Cordless Phone 1. VDD 2. NC 3. Output DFN2020-6 Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www. diodes. com/quality/lead-free/ for more information about Diodes In
