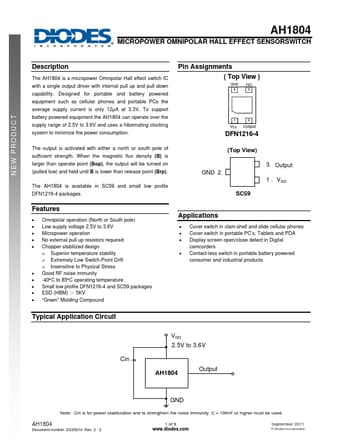

Part number: AH1804
Manufacturer: DIODES (https://www.diodes.com/)
File Size: 201.53KB
Download: 📄 Datasheet
Description: MICROPOWER OMNIPOLAR HALL EFFECT SENSORSWITCH
* Omnipolar operation (North or South pole)
* Low supply voltage 2.5V to 3.6V
* Micropower operation
* No external pull up resistors required
* Choppe.
* Cover switch in clam-shell and slide cellular phones
* Cover switch in portable PC’s, Tablets and PDA
* Di.
The AH1804 is a micropower Omnipolar Hall effect switch IC with a single output driver with internal pull up and pull down capability. Designed for portable and battery powered equipment such as cellular phones and portable PCs the average supply cur.
