AH1803 - ULTRA-SENSITIVE HALL EFFECT SWITCH

AH1803 Description

NOT RECOMMENDED FOR NEW DESIGN USE AH1806 Green AH1803 MICROPOWER, ULTRA-SENSITIVE HALL EFFECT SWITCH .
The AH1803 has two Hall effect plates and a CMOS output driver.

AH1803 Features

* Micropower Operation
* Operation with North or South Pole
* 2.4 to 5.5V Battery Operation
* Chopper Stabilized
* Superior Temperature Stability
* Extremely Low Switch-Point Drift
* Insensitive to Physical Stress
* Good RF Noise Immunity
* -40°C to +85°C Operatin

AH1803 Applications

* Cellular Phone
* PDA
* Cordless Phone Notes: 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3). compliant. All applicable RoHS exemptions applied. 2. See https://www. diodes. com/quality/lead-free/ for more information about Diodes Incorporated’s definitions

📥 Download Datasheet

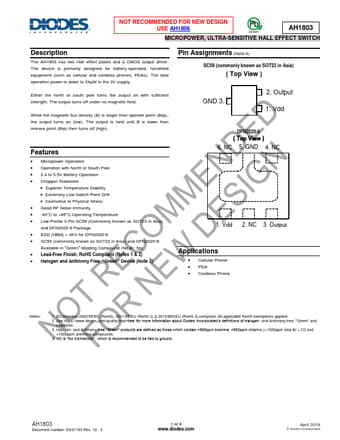

Preview of AH1803 PDF
