AP3776 LOW POWER OFF-LINE PRIMARY SIDE REGULATION CONTROLLER

AP3776 Description

A Product Line of Diodes Incorporated AP3776 LOW POWER OFF-LINE PRIMARY SIDE REGULATION CONTROLLER .
Pin Assignments The AP3776 is a high performance AC/DC power supply controller for battery charger and adapter applications.

AP3776 Features

* Primary Side Control for Eliminating Opto-coupler
* 10mW No-load Input Power
* Compensation for External Component Temperature Variations
* Flyback Topology in DCM Operation
* Random Frequency Adjustment to Reduce System EMI
* Semi-valley Turn on for the Higher Efficiency

AP3776 Applications

* It can meet less than 10mW standby power for “Super Star” charger criteria. The device uses Pulse Frequency Modulation (PFM) method to build discontinuous conduction mode (DCM) flyback power supplies. The AP3776 provides accurate constant voltage (CV), constant current (CC) and outstanding dynamic

📥 Download Datasheet

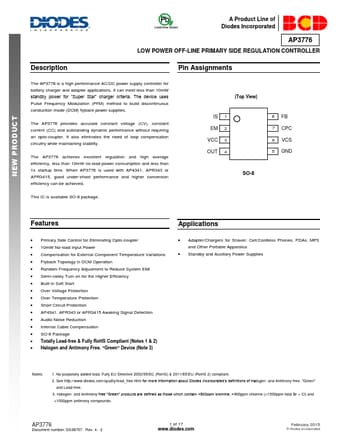

Preview of AP3776 PDF
