AP3783R PRIMARY SIDE REGULATED SWITCHING MODE POWER SUPPLY CONTROLLER

AP3783R Description

NEW PRODUCT AP3783R PRIMARY SIDE REGULATED SWITCHING MODE POWER SUPPLY CONTROLLER .
Pin Assignments The AP3783R is a high frequency, high efficiency and high accuracy switching mode power supply controller to drive power MOSFET for.

AP3783R Features

* Less than 30mW Standby Power Consumption
* Meet Efficiency Requirement of COC Trier2
* Valley Turn-on to Reduce Switching Loss and Improve EMI
* Piece-wise Frequency Reduction to Enhance Conversion Efficiency and Suppress Audio Noise
* Over Voltage Protection (OVP)
* Over T

AP3783R Applications

* The controller regulates the output voltage and current in the primary side by piece-wise Pulse Frequency Modulation (p-PFM) in discontinuous conduction mode (DCM). The system operating frequency reduces linearly from heavy load to light load in each interval of the p-PFM, and enters constant curre

📥 Download Datasheet

Preview of AP3783R PDF

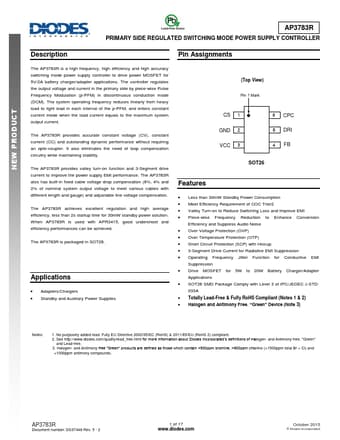

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP3783R
Manufacturer
DIODES ↗
File Size
566.20 KB
Datasheet
AP3783R-Diodes.pdf
Description
PRIMARY SIDE REGULATED SWITCHING MODE POWER SUPPLY CONTROLLER
