AP3785T PRIMARY SIDE REGULATED SWITCHING MODE POWER SUPPLY CONTROLLER

AP3785T Description

NEW PRODUCT AP3785T PRIMARY SIDE REGULATED SWITCHING MODE POWER SUPPLY CONTROLLER .
The AP3785T is a high performance AC/DC power supply controller for battery charger and adapter applications.

AP3785T Features

* Primary Side Control for Eliminating Opto-coupler
* 10mW No-load Input Power
* Flyback Topology in DCM Operation
* External Adjustable Line Compensation for CC
* External Adjustable Cable Compensation for CV
* Multiple PWM/PFM Control Mode to Improve Audio Noise and Efficie

AP3785T Applications

* It can meet less than 10mW standby power for “Super Star” charger criteria. The device uses Pulse Frequency Modulation (PFM) method to build discontinuous conduction mode (DCM) flyback power supplies. The AP3785T provides accurate constant voltage (CV), constant current (CC) and outstanding dynamic

📥 Download Datasheet

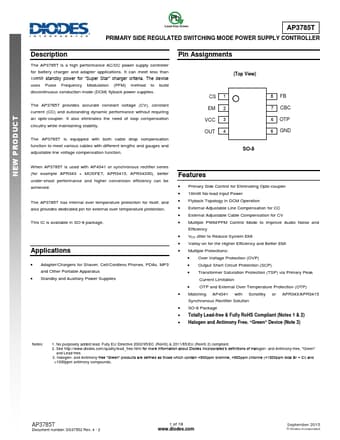

Preview of AP3785T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP3785T
Manufacturer
DIODES ↗
File Size
636.48 KB
Datasheet
AP3785T-Diodes.pdf
Description
PRIMARY SIDE REGULATED SWITCHING MODE POWER SUPPLY CONTROLLER
