AP3783 PRIMARY SIDE REGULATED SWITCHING MODE POWER SUPPLY CONTROLLER

AP3783 Description

AP3783 PRIMARY SIDE REGULATED SWITCHING MODE POWER SUPPLY CONTROLLER .
Pin Assignments The AP3783 is a high performance AC/DC power supply controller for battery charger and adapter applications.

AP3783 Features

* Less than 75mW Standby Power Consumption
* Meet Efficiency Requirement of COC Trier2
* Valley Turn-on to Reduce Switching Loss and Improve EMI
* Piece-wise Frequency Reduction to Enhance Conversion Efficiency and Suppress Audio Noise
* Over Voltage Protection (OVP)
* Over T

AP3783 Applications

* The controller regulates the output voltage and current in the primary side by piece-wise Pulse Frequency Modulation (p-PFM) in discontinuous conduction mode (DCM). (Top View) Pin 1 Mark The AP3783 provides accurate constant voltage (CV), constant current (CC) and outstanding dynamic performance

📥 Download Datasheet

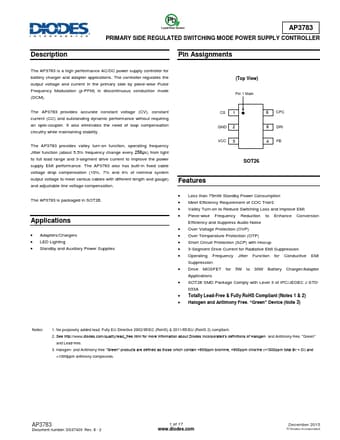

Preview of AP3783 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP3783
Manufacturer
DIODES ↗
File Size
554.24 KB
Datasheet
AP3783-Diodes.pdf
Description
PRIMARY SIDE REGULATED SWITCHING MODE POWER SUPPLY CONTROLLER
