BAV5004LP - HIGH VOLTAGE SWITCHING DIODE

Diodes

📥 Download Datasheet

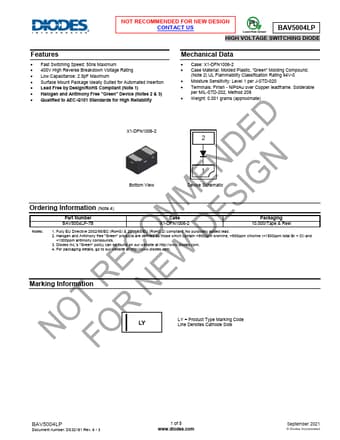

BAV5004LP Datasheet Preview — Preview of BAV5004LP PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: BAV5004LP
Manufacturer: DIODES ↗
File Size: 233.11 KB
Datasheet: BAV5004LP-Diodes.pdf
Description: HIGH VOLTAGE SWITCHING DIODE

BAV5004LP Product details

Features

Fast Switching Speed: 50ns Maximum.
400V High Reverse Breakdown Voltage Rating.
Low Capacitance: 2.5pF Maximum.
Surface Mount Package Ideally Suited for Automated Insertion.
Lead Free by Design/RoHS Compliant (Note 1).
Halogen and Antimony Free "Green" Device (Notes 2 & 3).
Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
Case: X1-DFN1006-2.
Case Material: Molded Plastic, “Green” Molding Compo.
