BAV99DWQ - SURFACE MOUNT SWITCHING DIODE ARRAY

Datasheet Summary

Features

  • Fast Switching Speed.
  • Small Surface Mount Package.
  • Low Reverse Recovery Time for Fast Switching.
  • Two “BAV99” Circuits In One Package.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability.
  • PPAP Capable (Note 4) BAV99DWQ.

📥 Download Datasheet

Datasheet preview – BAV99DWQ

Datasheet Details

Part number BAV99DWQ
Manufacturer DIODES
File Size 176.66 KB
Description SURFACE MOUNT SWITCHING DIODE ARRAY
Datasheet download datasheet BAV99DWQ Datasheet

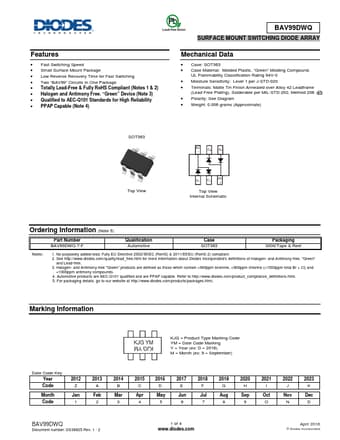

Additional preview pages of the BAV99DWQ datasheet.
