BAV99HDW - SURFACE MOUNT SWITCHING DIODE ARRAY

Datasheet Summary

Features

  • Fast Switching Speed.
  • High Reverse Breakdown Voltage.
  • Low Leakage Current.
  • Low Capacitance.
  • Two “BAV99” Circuits in One Package.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://www. diodes. com/quality/product-definitions/.
  • An automotive-compliant part is available under separate datasheet (BAV99HD.

📥 Download Datasheet

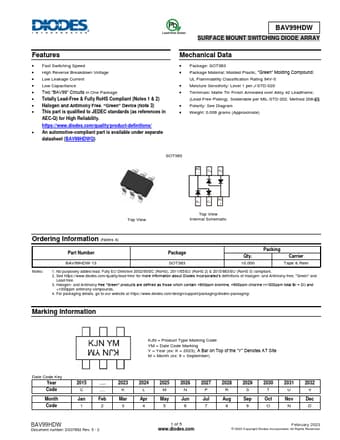

Datasheet preview – BAV99HDW

Datasheet Details

Part number BAV99HDW
Manufacturer DIODES
File Size 614.12 KB
Description SURFACE MOUNT SWITCHING DIODE ARRAY
Datasheet download datasheet BAV99HDW Datasheet
