DDTC115GCA, DDTC114GCA NPN PRE-BIASED SMALL SIGNAL SOT-23 SURFACE MOUNT TRANSISTOR

DDTC115GCA Description

NEW PRODUCT DDTC (R2-ONLY SERIES) CA NPN PRE-BIASED SMALL SIGNAL SOT-23 SURFACE MOUNT TRANSISTOR .

DDTC115GCA Features

* Epitaxial Planar Die Construction
* Complementary PNP Types Available (DDTA)
* Built-In Biasing Resistor, R2 only
* Lead, Halogen and Antimony Free, RoHS Compliant "Green" Device (Notes 2 and 3) A C TOP VIEW BC Mechanical Data
* Case: SOT-23
* Cas

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DDTC115GCA, DDTC114GCA. Please refer to the document for exact specifications by model.

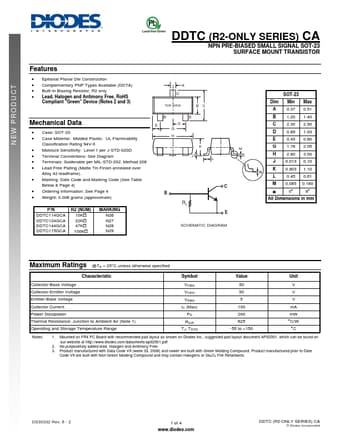

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DDTC115GCA, DDTC114GCA
Manufacturer
DIODES ↗
File Size
80.29 KB
Datasheet
DDTC114GCA-Diodes.pdf
Description
NPN PRE-BIASED SMALL SIGNAL SOT-23 SURFACE MOUNT TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: DDTC115GCA, DDTC114GCA.
Please refer to the document for exact specifications by model.
