DDTC115GE, DDTC114GE - NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Name: DDTC115GE
SKU: DDTC115GE-1296224

Diodes

The DDTC115GE by Diodes is a NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR. Below is the official datasheet preview.

Datasheet Details

Part number	DDTC115GE, DDTC114GE
Manufacturer	DIODES
File Size	428.48 KB
Description	NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Datasheet	DDTC114GE-Diodes.pdf
Note	This datasheet PDF includes multiple part numbers: DDTC115GE, DDTC114GE. Please refer to the document for exact specifications by model.

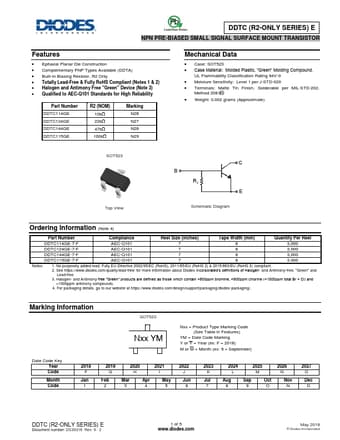

Additional preview pages of the DDTC115GE datasheet.

Epitaxial Planar Die Construction.
Complementary PNP Types Available (DDTA).
Built-In Biasing Resistor, R2 Only.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free "Green" Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability Part Number DDTC114GE DDTC124GE DDTC144GE DDTC115GE R2 (NOM) 10k 22k 47k 100k Marking N26 N27 N28 N29 Mechanical Data.
Case: SOT523.
Case Material: Molded Plastic, “Green” Moldin.
