DDTC115GKA, DDTC114GKA NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

DDTC115GKA Description

NEW PRODUCT DDTC (R2-ONLY SERIES) KA NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR .

DDTC115GKA Features

* Epitaxial Planar Die Construction
* Complementary PNP Types Available (DDTA)
* Built-In Biasing Resistor, R2 only
* Lead Free/RoHS Compliant (Note 2)
* "Green" Device, Note 3 and 4 Mechanical Data
* Case: SC-59
* Case Material: Molded Plastic

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DDTC115GKA, DDTC114GKA. Please refer to the document for exact specifications by model.

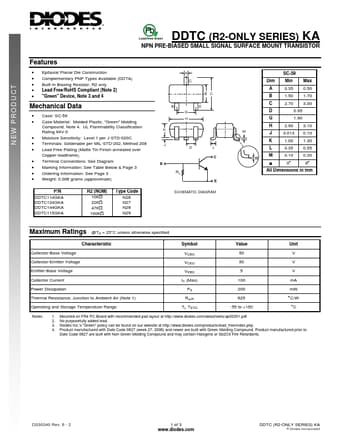

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DDTC115GKA, DDTC114GKA
Manufacturer
DIODES ↗
File Size
82.96 KB
Datasheet
DDTC114GKA-Diodes.pdf
Description
NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: DDTC115GKA, DDTC114GKA.
Please refer to the document for exact specifications by model.
