DDTC123JKA, DDTC113ZKA, NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

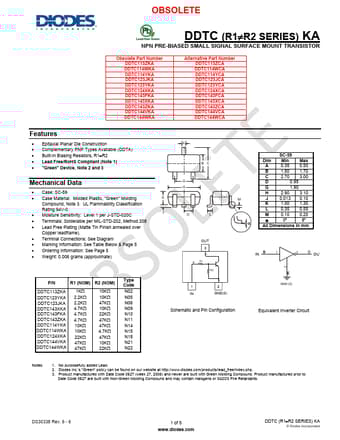

OBSOLETE DDTC (R1R2 SERIES) KA NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR Obsolete Part Number DDTC113ZKA DDTC114WKA DDTC114YKA DDTC123JK.

DDTC113ZKA-Diodes.pdf

DDTC123JKA Datasheet Preview — This datasheet PDF includes multiple part numbers: DDTC123JKA, DDTC113ZKA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DDTC123JKA, DDTC113ZKA

Manufacturer:

DIODES ↗

File Size:

199.78 KB

Description:

NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Note:

This datasheet PDF includes multiple part numbers: DDTC123JKA, DDTC113ZKA.
Please refer to the document for exact specifications by model.

Features

* Epitaxial Planar Die Construction
* Complementary PNP Types Available (DDTA)
* Built-In Biasing Resistors, R1R2
* Lead Free/RoHS Compliant (Note 1)
* "Green" Device, Note 2 and 3 Mechanical Data
* Case: SC-59
* Case Material: Molded Plastic, "Green" Molding Compound, N
