DMG4406LSS

N-Channel MOSFET

DMG4406LSS Features

* 100% Unclamped Inductive Switch (UIS) test in production

* Low On-Resistance

* Low Input Capacitance

* Fast Switching Speed

* Lead Free By Design/RoHS Compliant (Note 1)

* "Green" Device, Halogan and Antimony Free (Note 2)

* Qualified to AEC-

DMG4406LSS General Description

and Applications This MOSFET has been designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

* Backlighting

* Power Management Functions

* DC-DC Converters Fea.

DMG4406LSS Datasheet (522.90 KB)

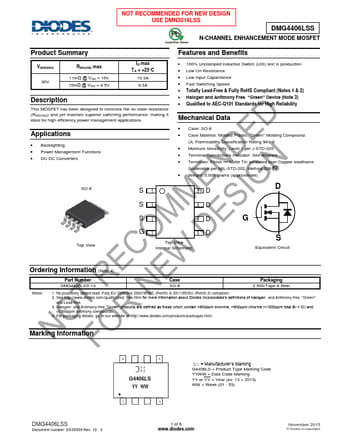

Preview of DMG4406LSS PDF

Datasheet Details

Part number:

DMG4406LSS

Manufacturer:

DIODES ↗

File Size:

522.90 KB

Description:

N-channel mosfet.
ADVANCE INNEFWORPRMOADTIUOCNT DMG4406LSS N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary V(BR)DSS 30V RDS(ON) max 11mΩ @ VGS = 10V 15mΩ @ VGS = .
