DMG4800LK3 Datasheet, Mosfet, INCHANGE

DMG4800LK3 Features

  • Mosfet
  • Drain Current
      –ID= 10A@ TC=25℃
  • Drain Source Voltage- : VDSS= 30V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 17mΩ(Max)
  • 100% av

PDF File Details

Part number:

DMG4800LK3

Manufacturer:

INCHANGE

File Size:

261.94kb

Download:

📄 Datasheet

Description:

N-channel mosfet. Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL

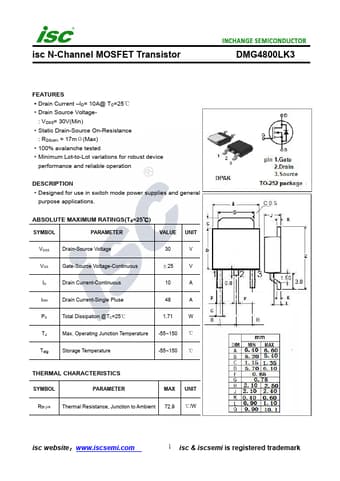

Datasheet Preview: DMG4800LK3 📥 Download PDF (261.94kb)
Page 2 of DMG4800LK3

DMG4800LK3 Application

  • Applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 30 V
