DMG4468LK3 Datasheet, Mosfet, INCHANGE

DMG4468LK3 Features

  • Mosfet
  • Drain Current
      –ID= 9.7A@ TC=25℃
  • Drain Source Voltage- : VDSS= 30V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 16mΩ(Max)
  • 100% a

PDF File Details

Part number:

DMG4468LK3

Manufacturer:

INCHANGE

File Size:

261.99kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

  • Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL

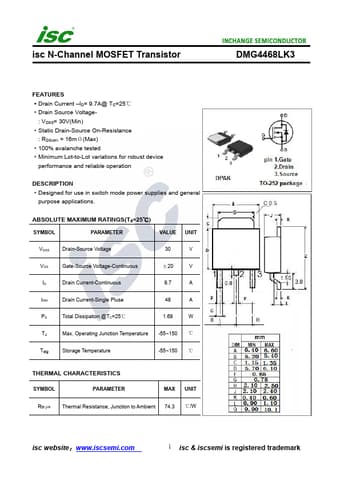

  • Datasheet Preview: DMG4468LK3 📥 Download PDF (261.99kb)
    Page 2 of DMG4468LK3

    DMG4468LK3 Application

    • Applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 30 V
