* Low On-Resistance
* Low Gate Threshold Voltage
* Low Input Capacitance
* Fast Switching Speed
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Qualified to AEC-Q101 Standards for High Reliability
* PPAP

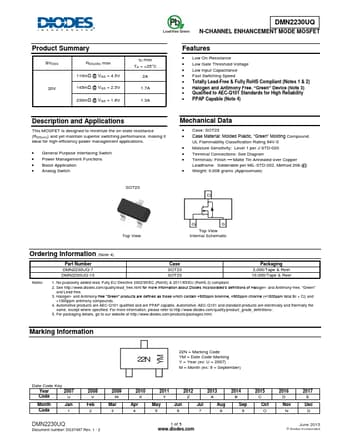

DMN2230UQ Datasheet (356.84 KB)
DMN2230UQ
356.84 KB
N-channel mosfet.
NEW PRODUCT
Product Summary
BVDSS 20V
RDS(ON) max 110mΩ @ VGS = 4.5V 145mΩ @ VGS = 2.5V 230mΩ @ VGS = 1.8V
ID max TA = +25°C
2A
1.7A
1.3A
DMN2230.
