DMN2215UDM - Dual N-Channel MOSFET

Features

  • Dual N-Channel MOSFET.
  • Low On-Resistance.
  • 100m @VGS = 4.5V, ID = 2.5A.
  • 140m @VGS = 2.5V, ID = 1.5A.
  • 215m @VGS = 1.8V, ID = 0.1A.
  • Very Low Gate Threshold Voltage.
  • Low Input Capacitance.
  • Fast Switching Speed.
  • ESD Protected Gate to 2kV HBM.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data.
  • Case: SOT26.
  • Case Material: Molded Plastic, “Green” Molding Compound.

📥 Download Datasheet

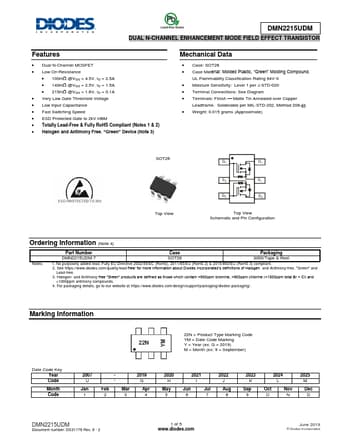

Datasheet preview – DMN2215UDM
