DMN22M5UFG - 20V N-Channel MOSFET

DIODES

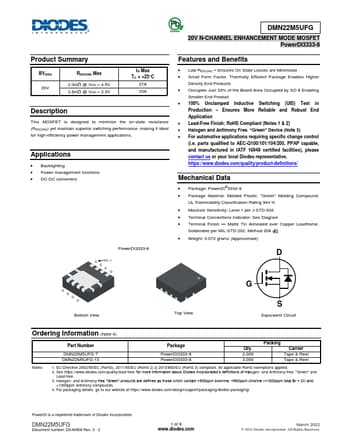

DMN22M5UFG Datasheet Preview — Preview of DMN22M5UFG PDF

Datasheet Details

Part number	DMN22M5UFG
Manufacturer	DIODES ↗
File Size	575.08 KB
Description	20V N-Channel MOSFET
Datasheet	DMN22M5UFG-DIODES.pdf

DMN22M5UFG Product details

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power management applications. Backlighting Power management functions DC-DC converters Low RDS(ON) Ensures On State Losses are Minimized Small Form Factor, Thermally Efficient Package Enables Higher Density End Products Occupies Just 33% of the Board Area Occupied by SO-8 Enabling Small

Features

BVDSS 20V RDS(ON) Max 2.0m @ VGS = 4.5V 2.6m @ VGS = 2.5V ID Max TC = +25°C 27A 23A.
