* Rated to +175°C
* Ideal for High Ambient Temperature Environments
* 100% Unclamped Inductive Switching
* ensures more reliable and robust end application
* Low RDS(ON)
* minimizes power losses
* Low Qg
* minimizes switching losses
* Totally Lead-
DMNH6042SPD Datasheet (489.78 KB)
DMNH6042SPD
489.78 KB
N-channel mosfet.
ADVANACDEVDA INNCFEOIRNMFAOTRIMOANTION

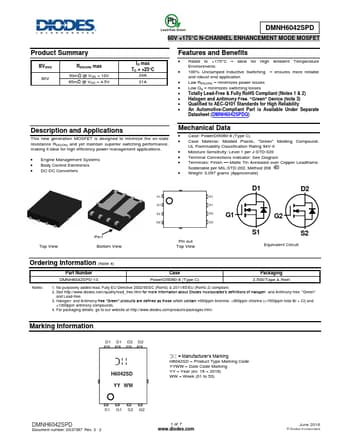

DMNH6042SPD
60V +175°C N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BVDSS 60V
RDS(ON) max
50mΩ @ VGS =.
