* Rated to +175°C
* Ideal for High Ambient Temperature Environments
* 100% Unclamped Inductive Switching
* Ensures More Reliable and Robust End Application
* Low RDS(ON)
* Minimizes Power Losses
* Low Qg
* Minimizes Switching Losses

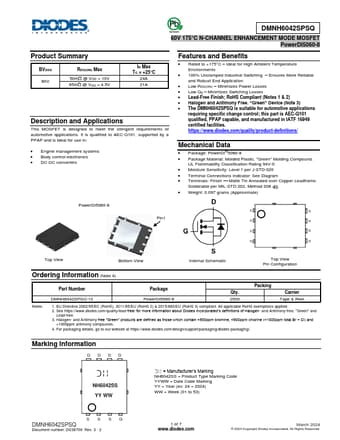

DMNH6042SPSQ Datasheet (415.85 KB)
DMNH6042SPSQ
415.85 KB
N-channel mosfet.
DMNH6042SPSQ
Green
60V 175°C N-CHANNEL ENHANCEMENT MODE MOSFET PowerDI5060-8
Product Summary
BVDSS 60V
RDS(ON) Max
50m @ VGS = 10V 65m @ VGS = 4..
